A compact off-line system designed for the chemical paint stripping of aluminum profiles, ideal for restoring rejected or defective parts without disrupting production.

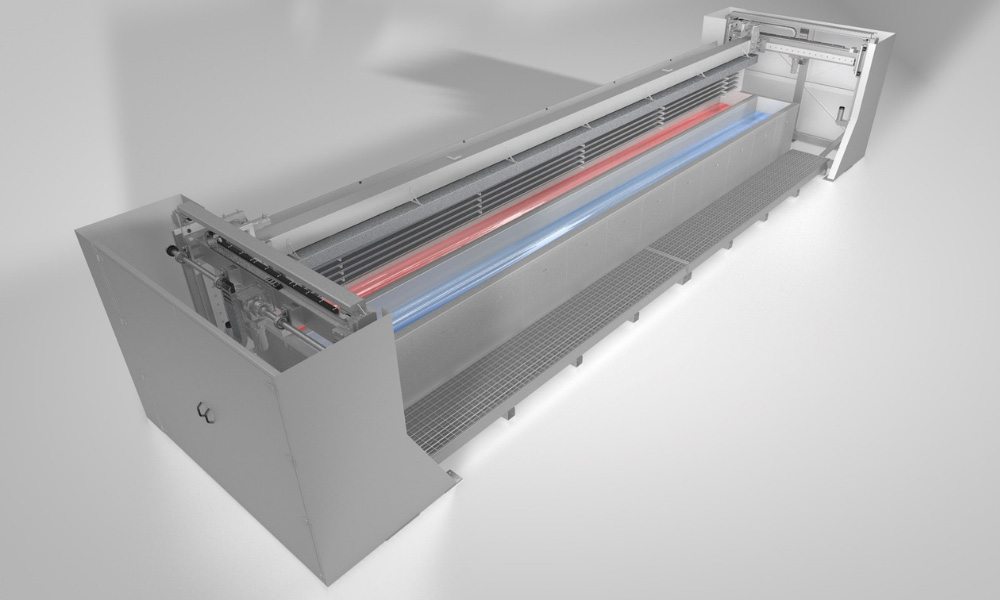

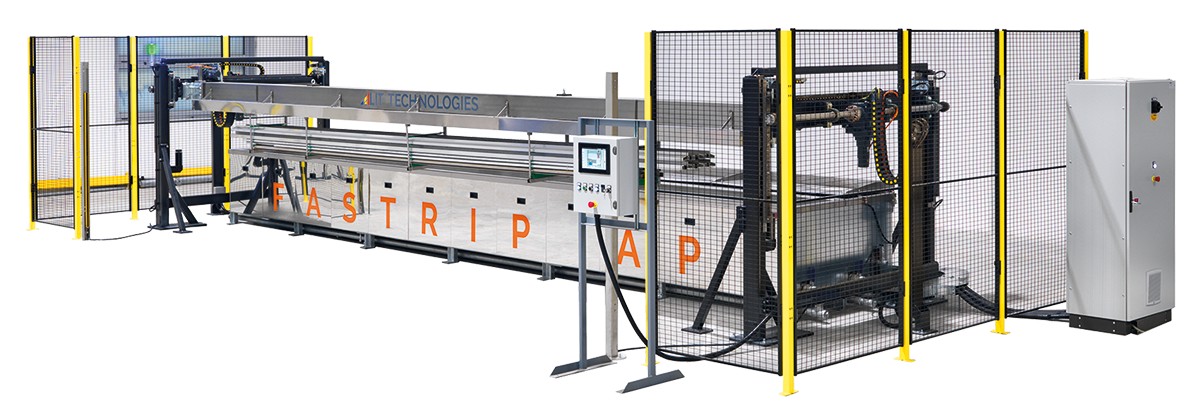

FASTRIP AP is a compact off-line stripping system for aluminum extruders, coaters, and fabricators that need to restore painted profiles in-house.
The system is designed to handle profiles up to 550 lb and 26 ft in length. Stripping is performed in a heated immersion tank followed by a dedicated rinsing tank, with an average cycle time of approximately 3 hours, depending on coating type and thickness.
Profiles are loaded using racks or baskets and moved automatically through the process. The ergonomic loading and unloading position, combined with active fume extraction and built-in safety systems, allows safe operation next to existing processing lines or as a standalone system.
For optimal performance, FASTRIP AP is designed to work with ALIT Metalstrip alkaline paint strippers, providing consistent stripping results, extended bath life, and reduced chemical consumption.
Off-line layout with loading and unloading from the same side, minimizing required footprint
• AISI 304 stainless steel stripping and rinsing tanks
• Maximum load capacity: up to 550 lb
• Maximum profile length: up to 26 ft
• Heated stripping tank with automatic pneumatic lid
• Process temperature range: 115 °F to 140 °F
• Electrical control cabinet with 8-inch in touchscreen HMI
