A modular stripping system that integrates rinsing and material handling for the in-house recovery of painted parts, hooks, and frames.
FASTRIP T5 Multitank is designed for high-throughput coating operations that need to strip parts, hooks, and frames and return them to production quickly.

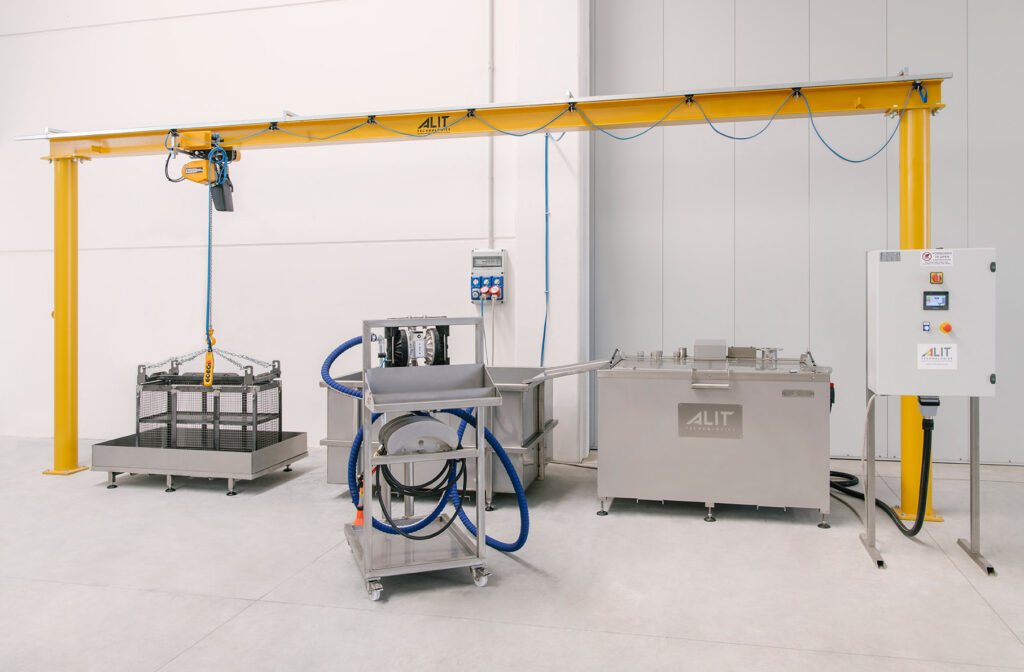

The system combines a chemical immersion stripping tank with dedicated rinsing and handling stations, keeping rework activities inside the plant without disrupting daily operations.

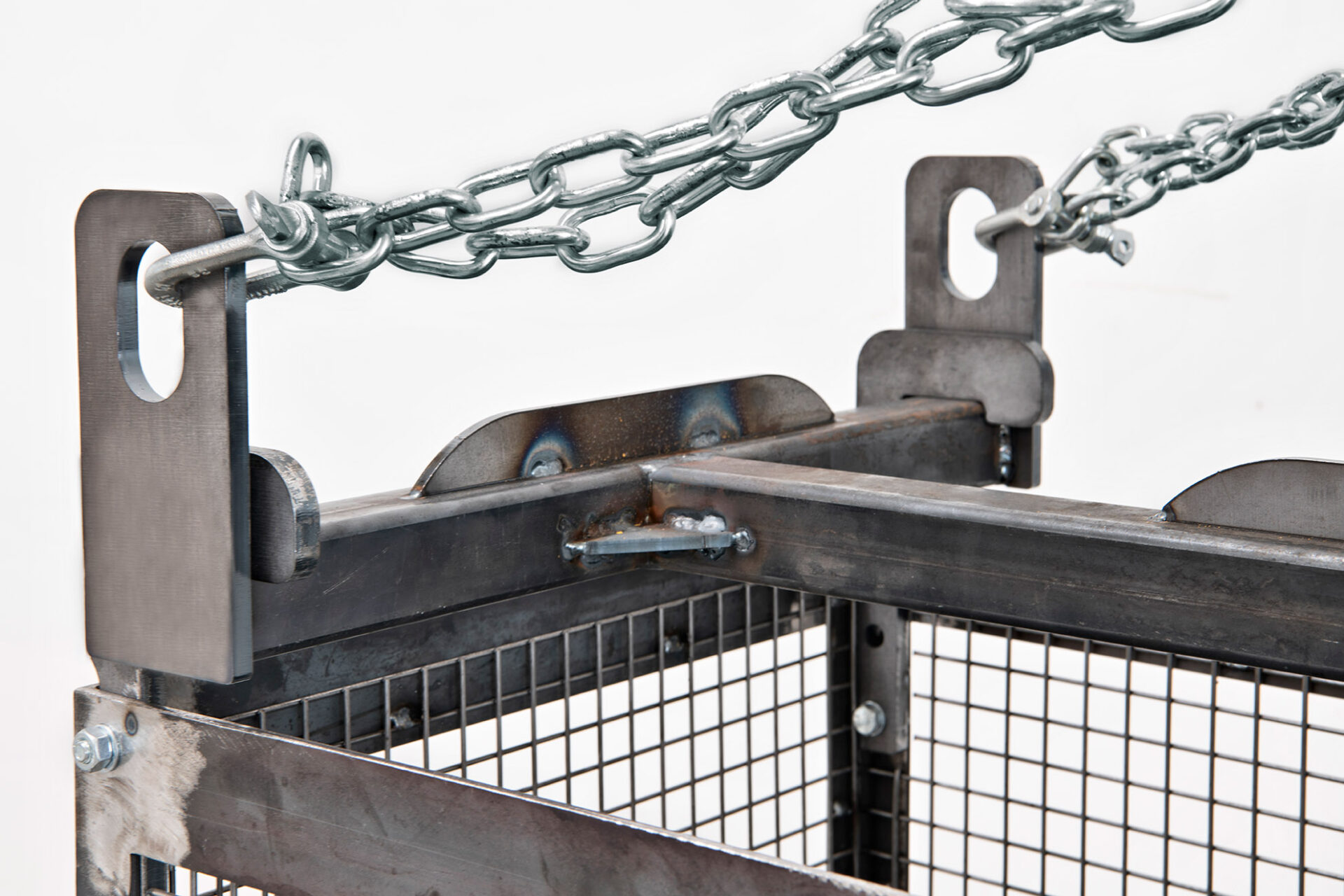

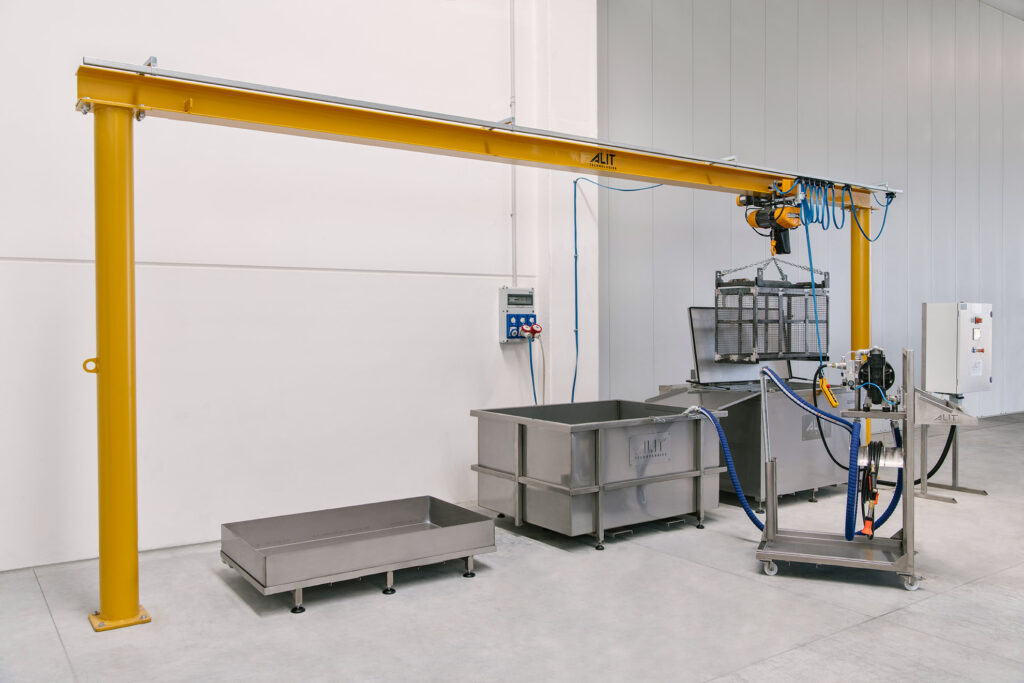

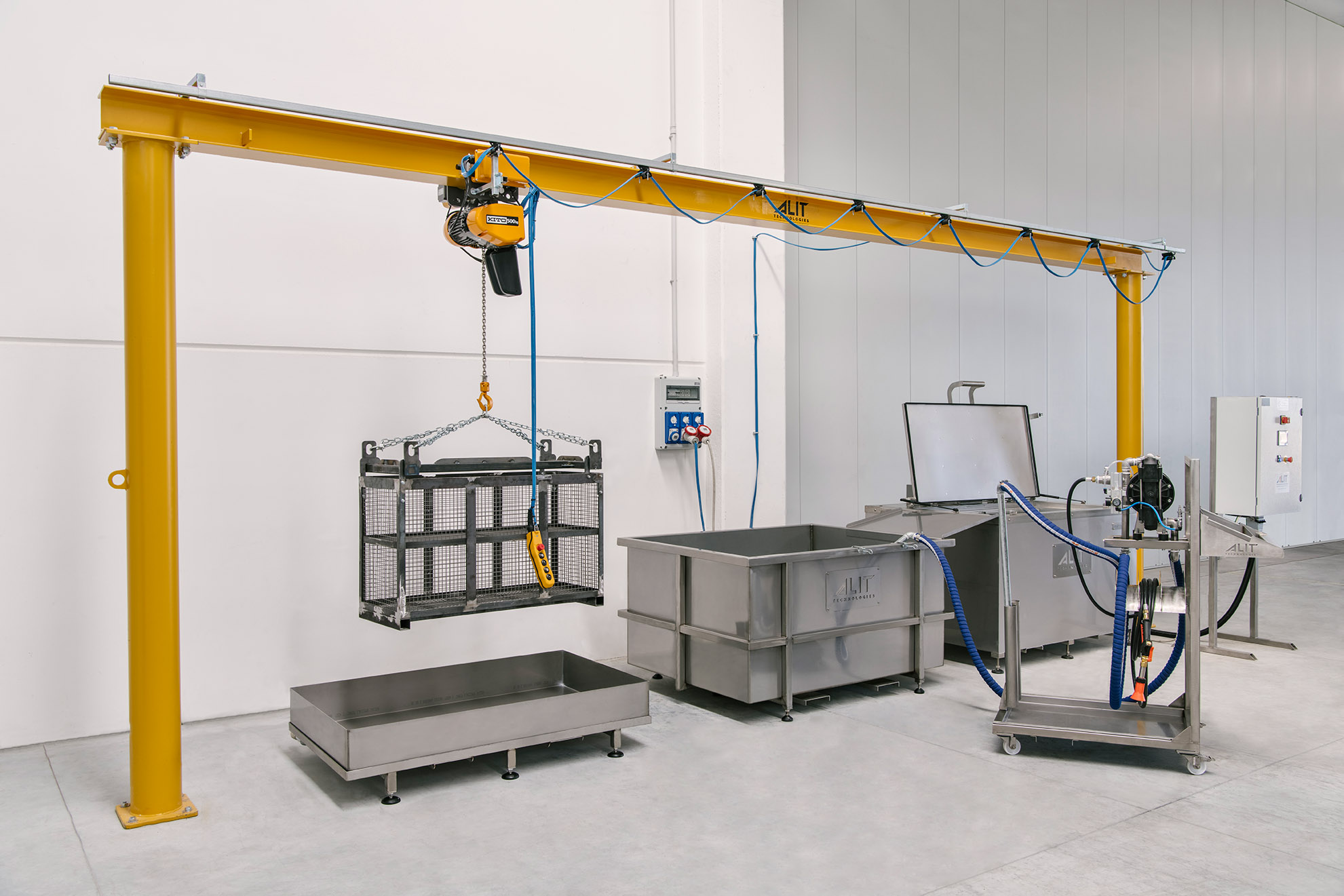

Parts are loaded into custom stainless steel baskets and moved with a manual overhead crane from stripping to rinsing.
Controlled agitation and electric heating support consistent coating removal while protecting the metal surface.

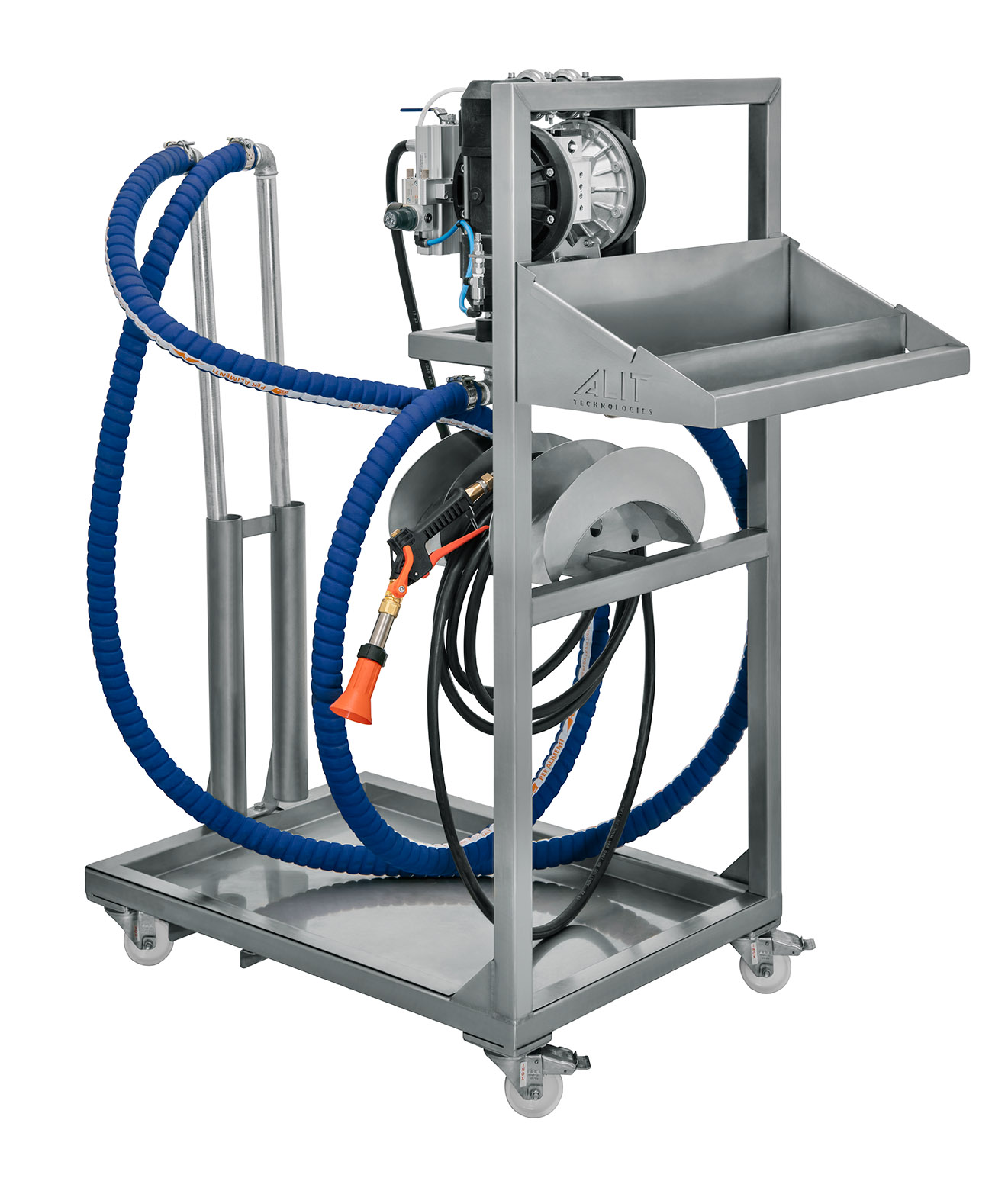

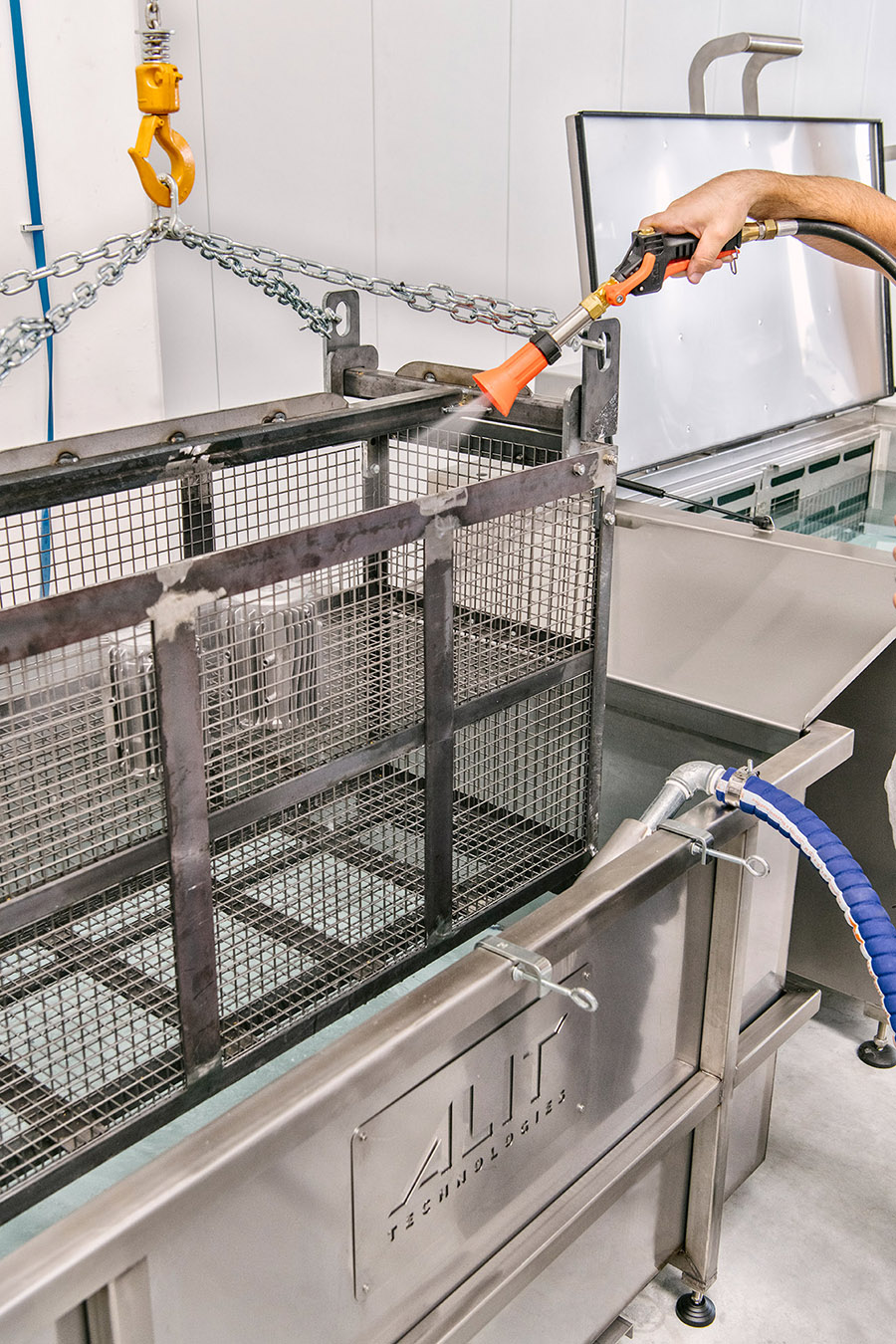

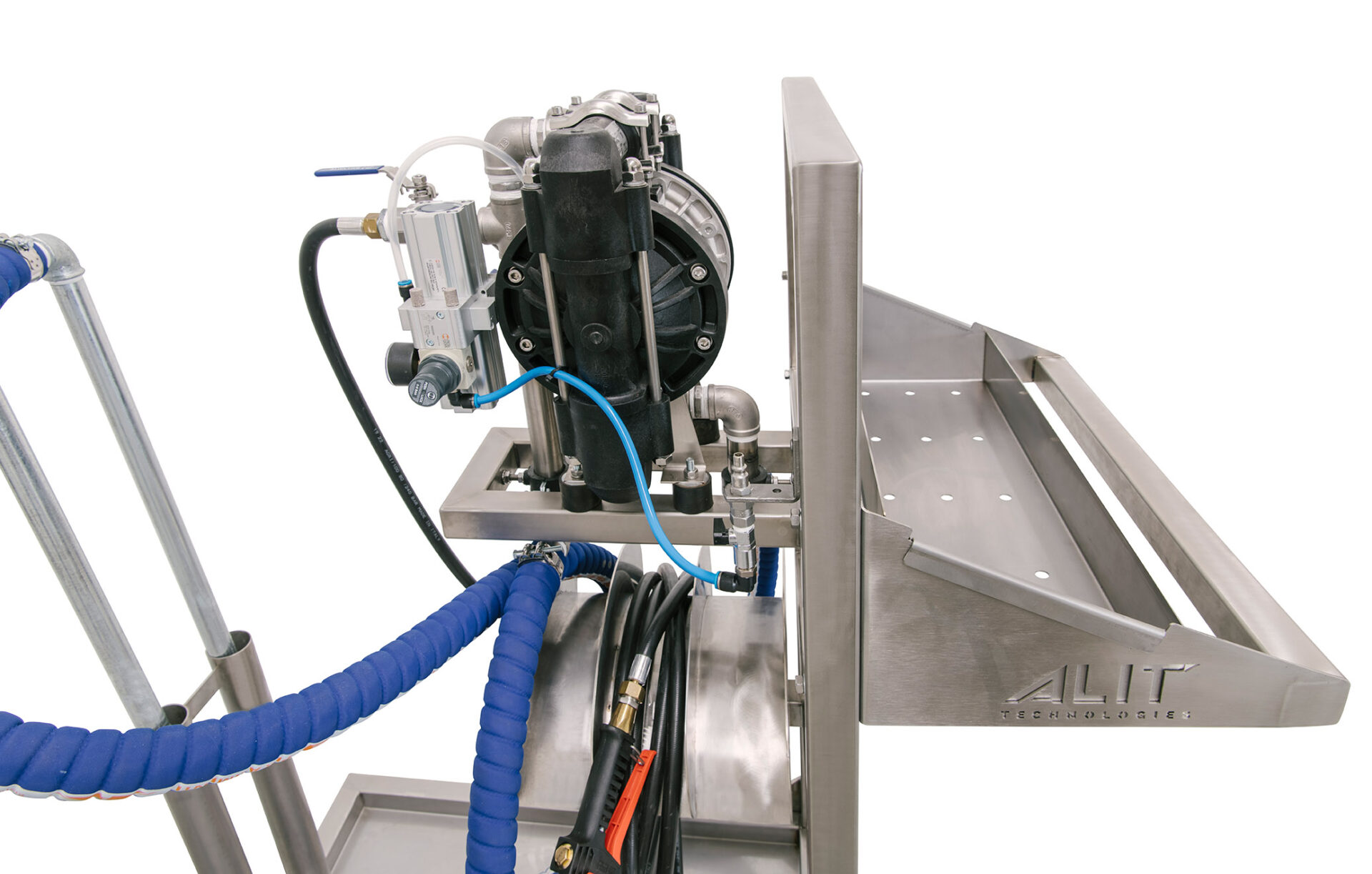

Rinsing can be performed by immersion or final spray using a mobile pump, while low-profile collection tanks capture drips during handling.
All tanks are built in AISI 304 stainless steel and use a tank-in-tank safety design to support clean, repeatable production cycles.
Dedicated tanks for stripping, rinsing, and handling support a repeatable shop-floor process.
• Modular immersion paint stripping system
• Chemical stripping tank with mixer agitation
• Tank-in-tank safety design for liquid containment
• AISI 304 stainless steel construction
• Integrated electric heating with temperature control up to 175 °F
• Safety-interlocked lid with fume extraction connection
• Plug-and-play electrical panel with touchscreen interface
